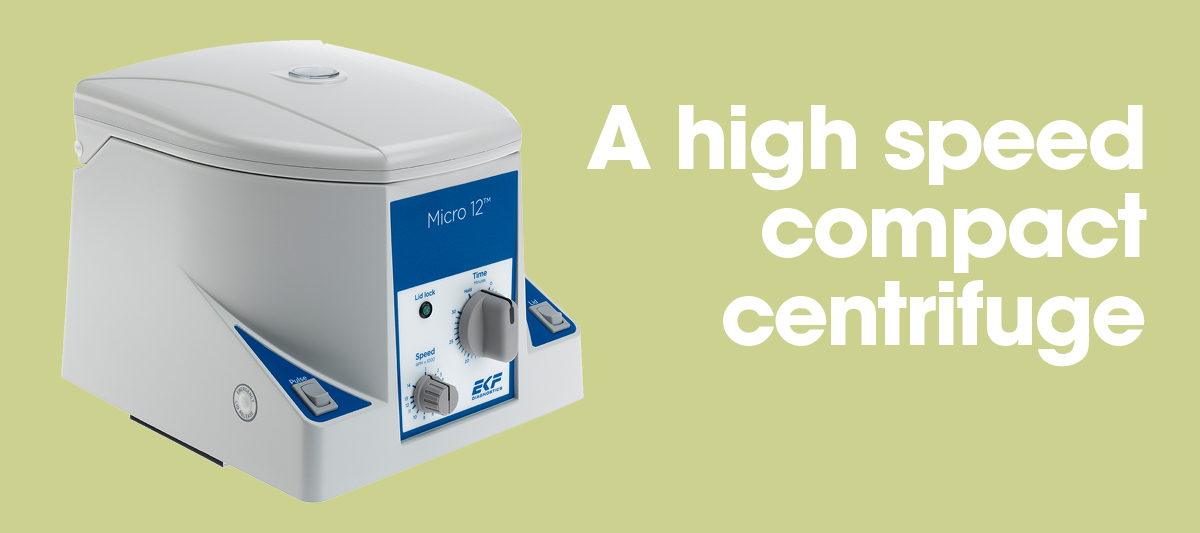

Micro 12™ High Speed Microcentrifuge

Micro-12-Chemistry-Analyzer

The Micro 12™ centrifuge is a versatile microcentrifuge, ideal for clinical, molecular and bacteriological applications

The Micro 12 High Speed Microcentrifuge is perfect for small volume samples, quick spin downs, cell and bacteria separations and various nucleic acid tests. Micro 12 High Speed Microcentrifuge can also be used to separate DNA due to its maximum spin speed of 14,000 rpm and a maximum relative centrifugal force of 16,000 g.

Micro 12™ High Speed Microcentrifuge is ideal for use in busy labs where space is at a premium. The brushless motor ensures whisper-quiet operation whilst the compact footprint of the centrifuge is the equivalent to an A4 sheet of paper.

The high speed microcentrifuge’s flexibility means that it can accommodate tubes up to 2 mL in diameter, allowing for a range of different applications.

Easy centrifugation in 3 steps

Micro-12-chemistry-analyzer-1-step

1.  Pipette sample into tube.

Micro-12-chemistry-analyzer-2-step

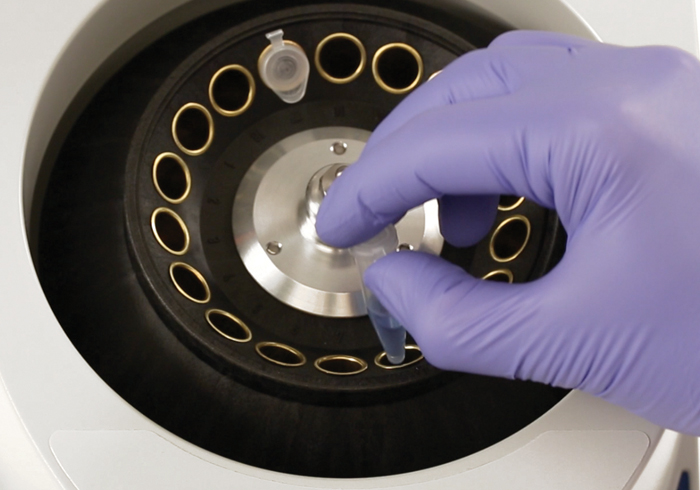

2.  Place tube and counterweight into rotor.

Micro-12-chemistry-analyzer-3-step

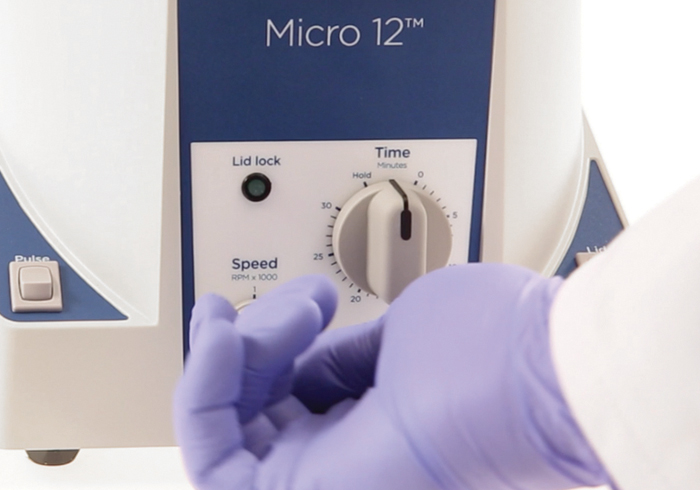

3.  Select spin speed and time.

  • Brushless motor
  • High maximum speed (14,000 rpm / 16,000 x g)
  • Unique airflow patterns keeps samples cool
  • Cold room compatible
  • 18 x 1.5/2.0 ml rotor
  • Easy to use control panel
  • Rotor easily removed
  • Accepts PCR strips with adaptor
  • One year warranty

The Micro 12 is a versatile high speed microcentrifuge, ideal for clinical, molecular and bacteriological applications.

Ordering Information – Micro 12™ High Speed Microcentrifuge

Description Reference Number Pack Qty
Micro 12™ Centrifuge 100-152 1 Each
Description Reference Number Pack Qty
Adapters for 0.2 mL tubes 230-119 1 box of 6
StripSpin adapter for 8 x 0.2 mL tube strips 230-123 2 pcs
Adapters for 0.25 – 0.4 mL tubes 230-120 1 box of 6
Adapters for 0.5 – 0.6 mL tubes 230-121 1 box of 6

Video

Key Features

18 place rotor
High maximum speed
Robust and reliable
Small footprint
Exceptionally quiet running

Specifications

Rotor size – 18 place rotor with fixed angle head

Maximum RCF – 16,000 x g

Speed range – 1,000 rpm to 14,000 rpm

Maximum capacity – 18 x 1.5 / 2.0 mL tubes

Timer – 1 to 30 minutes, hold or continuous ‘quick’ button

Weight – 10 lbs

Dimensions – 8.25 (w) x 8.9 (d) x 7.6 (h) inches

Centrifuge pack includes

Microcentrifuge, 18 place 1.5 / 2.0 mL rotor, 18 x 0.5 mL adaptors and user manual.

Frequently asked questions

Micro 12 is designed to be used for quick spin downs and in molecular testing. It is particularly useful in children’s hospitals and clinical labs

Adaptors are available for tubes smaller than 1.5 mL. Additionally adaptors are available for tube strips.

All parts should be wiped down periodically with a soft cloth. For more thorough cleaning, use a neutral cleaning agent (pH between 6 and 8) applied with a soft cloth.

Excessive amounts of liquid should be avoided. Liquid should not come into contact with the motor. After cleaning, ensure that all parts are dried thoroughly by hand or in a warm air cabinet (maximum temperature 50ºC).

The rotor should be cleaned after each use. When spinning samples containing phenol or phenol chloroform, the rotor should be cleaned immediately after use.

The Micro 12 centrifuge has been subject to thorough testing and quality control. In the unlikely event of a manufacturing fault, our one year warranty (from the date of delivery) covers the centrifuge and the rotor.
