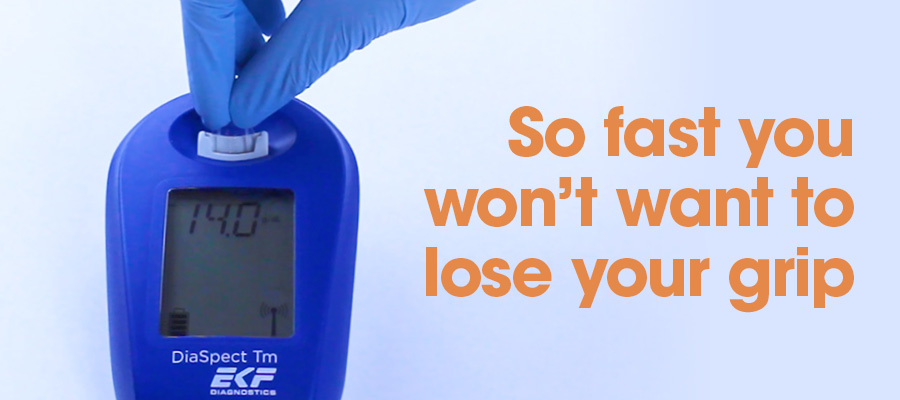

DiaSpect Tm Hemoglobin Analyzer

DiaSpect-Tm-Hemoglobin-Analyzer

The DiaSpect Tm Hemoglobin Analyzer provides immediate hemoglobin results from a hand-held analyzer

Easy measurements in 3 steps

Diaspect hemoglobin analyzer step 1

1.  Collect blood sample.

Diaspect hemoglobin analyzer step 2

2.  Insert the filled cuvette and press down gently.

Diaspect hemoglobin analyzer step 3

3.  Results appear in less than two seconds.

Easy to use

  • ‘Always-on’ technology. Ready for use immediately
  • Automatic self-check between each measurement
  • Symbol-based display
  • Factory calibrated with permanent calibration
  • Long cuvette shelf life: 2 ½ years from date of production
  • Cuvettes unaffected by humidity or temperature and can be used until
    expiration date after opening the bag

Accurate and reliable

  • Photometric method with broad spectrum and compensation for turbidity
    and scattering
  • Operating ambient temperature 50 to 90°F (10°C to 35°C)
  • Measuring range: 1.2 – 25.5 g/dL
  • Precision (within run): CV ≤1 %
  • Calibrated against HiCN reference method according to ICSH



Practical and portable

  • Capillary or venous blood (EDTA and lithium heparin tubes can be used)
  • Maintenance free
  • Transport temperature:  -22 to 158°F (-30 to 70°C) up to a maximum of 24 hours.
  • Integrated rechargeable lithium-ion battery (40 days or 10,000 tests of
    continuous use)
  • Compact: 5.9 (d) x 3.5 (w) x 1.5 (h) inches
  • Lightweight: 0.4 lb (180 g)
  • Connect to PC via USB 2.0



Reagent-free cuvettes

  • Sample volume 10 µL
  • Shelf life of up to 2.5 years, even after the bag has been opened
  • Storage temperature:  32 to 122°F (0 to 50°C)
  • Easy to pick up and handle with gloves
  • FDA Cleared / CLIA Waived / CE marked

Key Features

Results in less than two seconds
'Always on' technology
Reagent-free cuvettes
Internal battery provides 40 days or 10,000 tests continuous use
2 ½ years cuvette shelf life
Compact and lightweight

Specifications

Principle: Photometric

Sample Type: Capillary or venous blood

Sample Size: 10 µl

Measuring Range: 1.2 – 25.5 g/dL

Total Precision CV: ≤1.0 %

Analyzer pack includes

USB power supply with AC adaptor plug.

Product Support Documents
