Excel™ Semi-automated Chemistry Analyzer


The Excel™ is a Semi-automated Chemistry Analyzer designed for use in small laboratories that require affordable sample testing.

Excel™ is a semi-automated chemistry analyzer designed for use in small laboratories that require affordable sample testing. Excel is FDA 510 (k) cleared.

Excel commonly uses serum, plasma, urine or cerebrospinal fluid (CSF) but can also be configured to run other sample material.

The Excel is controlled by a microprocessor and samples are read using a flowcell module to ensure reagent consumption is optimized. It features an 18-position incubator and a PC-style keyboard is also included.

The semi-automated chemistry analyzer is equipped to handle endpoint, kinetic and EIA assays. The open system format accommodates 120 programs and, for added convenience, all routine Stanbio chemistries are pre-programmed.

Excel Semi-automated Chemistry Analyzer completes all the necessary calculations and displays patient results in a user defined format. Printed results eliminate manual calculations and provide hard-copy patient records.

Easy to follow instructions are displayed on the screen for each test. Additional technical support provided through a detailed operating manual.

Interferences are eliminated through the use of a bichromatic optical system, which negate interferences caused by sample or cuvette quality.

The EKF Diagnostics Excel Semi-automated Chemistry Analyzer provides the choice of multiple calculation modes. Choose from single point calibration by standard or factor, uptake, multi-point calibration with point-to-point curve fit, rate by standard or factor (batch or single) and sample blanking.

Key Features

Compatible with endpoint, kinetic and EIA assays
120 open channels
Stanbio Chemistry reagents pre-programmed
Flowcell module minimizes reagent consumption
Easy to follow on-screen instructions


Modes – Standard Absorbance, Kinetic Absorbance (with or without factor) and Multi-point (up to 7 points)
Wavelength – 340, 405, 450, 505, 545, 600 nm (with Peltier system)
Capacity – 120 channels
Minimum Read Volume – 250 µL

Analyzer pack includes

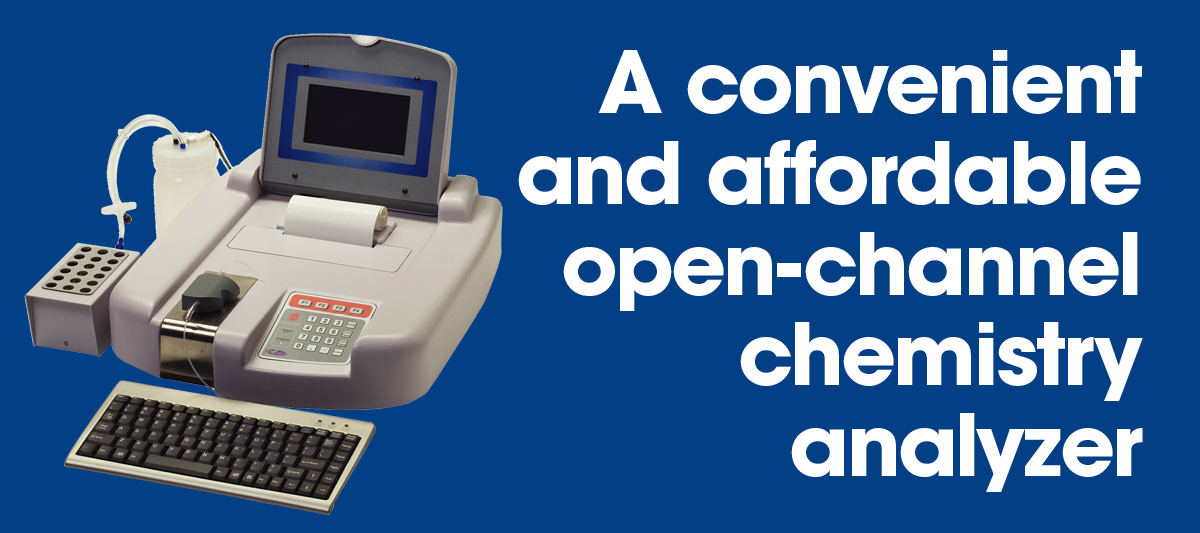

Excel™ analyzer with 18 position incubator, internal printer, keyboard and user manual.

Frequently asked questions

The Excel is an open channel chemistry system. It is pre-programmed to run the range of Stanbio Chemistry reagents, but can also be configured to meet the needs of individual laboratories.

A wide range of Stanbio Chemistry liquid and powder reagents are available for use with Excel:

  • Albumin
  • Alkaline Phosphatase
  • Amylase
  • Bilirubin (Total)
  • Bilirubin (Direct)
  • Calcium
  • Chloride
  • Cholesterol
  • CK (NAC)
  • CK-MB
  • Creatinine
  • Gamma-GT
  • Glucose (Hex.)
  • Glucose (Trinder)
  • Glycohemoglobin
  • Iron (Total)
  • HDL-Cholesterol
  • LDL-Cholesterol
  • LDH
  • Magnesium
  • Potassium
  • Protein (Total)
  • Phosphorus
  • Sodium
  • Triglyceride
  • Urea Nitrogen
  • Uric Acid

Ordering Information

Description Reference Number Pack Qty
Excel™ (English) G7700E-001 1 Each
Excel™ (Spanish) G7700S-001 1 Each
Description Reference Number Pack Qty
Excel™ Replacement Lamp 112004 1 Each
Thermal Printer paper 3180-005 1 box of 5
